Seismic spring isolators SM3-2



Model #:   SM3-2
Product Name:   Seismic spring isolators SM3-2
Availability:  In Stock

See complete description below:

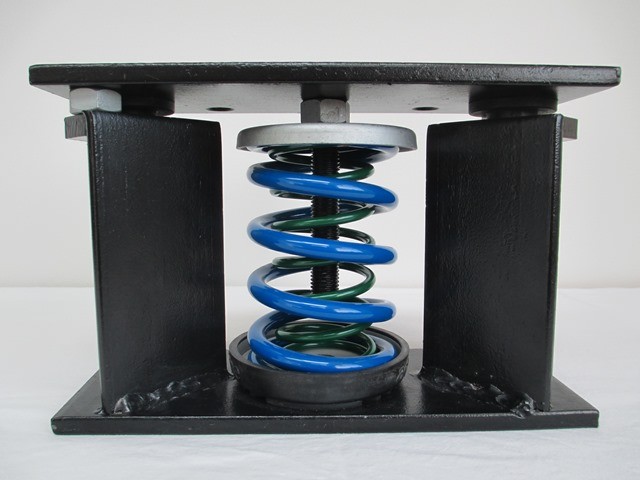

SM3-2 seismic vibration isolators are designed to carry heavy loads. The isolator housing is fabricated from high quality welded steel. This design incorporates four restraining points that limit vertical and lateral movement of the equipment caused by external forces such as high winds or seismic events.


product image list

Thumbnail image(1) of Seismic spring isolators SM3-2Thumbnail image(2) of Seismic spring isolators SM3-2
Click thumbnails to enlarge images


Qty :

Add to Shopping Cart

Cart Checkout

Product sales listing

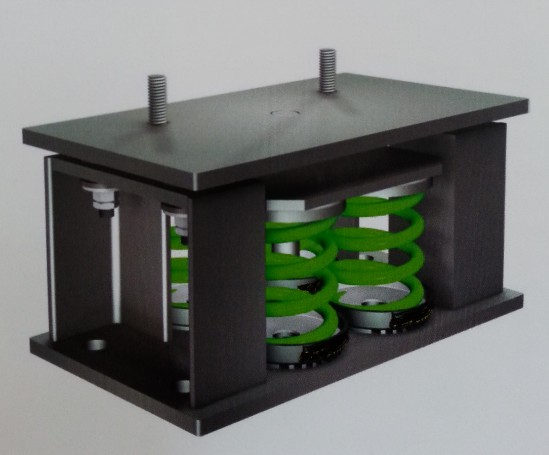

The operational height of the isolators is fixed and any adjustment can be made via the adjustment nut on top of the spring plate. Studs are provided on the top plate for easy installation. Vibration isolation is achieved by free-standing laterally-stable steel springs. All springs are assembled into elastomeric acoustical cups to eliminate internal noise. Springs are designed with 50% overload capacity and the lateral spring stiffness is greater than the vertical stiffness to assure seismic stability.
