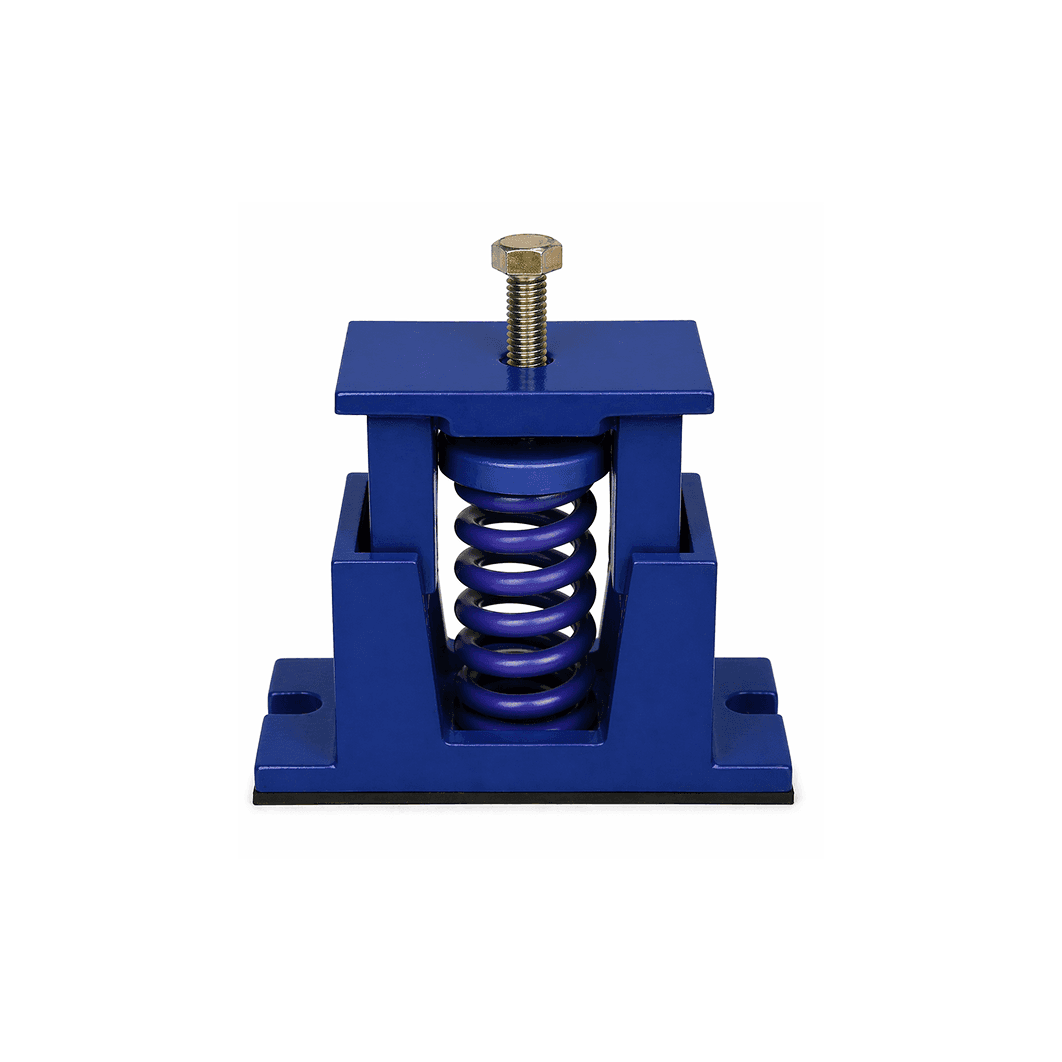

Housing spring mounts are made of high quality steel casing. Springs are made from high quality heavy spring steel. The castings are powder coated with proper treatment for rust prevention. Springs are powder coated for rust prevention and color coded for identification. Anti skid rubber is provided at bottom for housing grip.
Key Features
High strength steel housing
Heavy duty isolation spring
Powder coated corrosion protection
Color coded spring identification
Integrated anti-skid rubber base
Durable design for long term performance
Applications
Used for wide range of HVAC equipments such as compressors, air handling units, fans, pumps and chillers, etc.
Used across commercial and industrial environments.
Technical Specifications
Model No. | Rated Load (lbs) | Rated Load (kg) | Deflection (in) | Spring Color |
|---|---|---|---|---|
G1T 660 | 660 | 300 | 1.00 | Green |
G1T 880 | 880 | 400 | 1.00 | Brown |
G1T 1100 | 1100 | 500 | 1.00 | Blue |
G1T 1320 | 1320 | 600 | 1.00 | Dark Purple |
G1T 1650 | 1650 | 750 | 1.00 | Light Purple |
G1T 1980 | 1980 | 900 | 1.00 | Red |
G1T 2200 | 2200 | 1000 | 1.00 | Grey |
